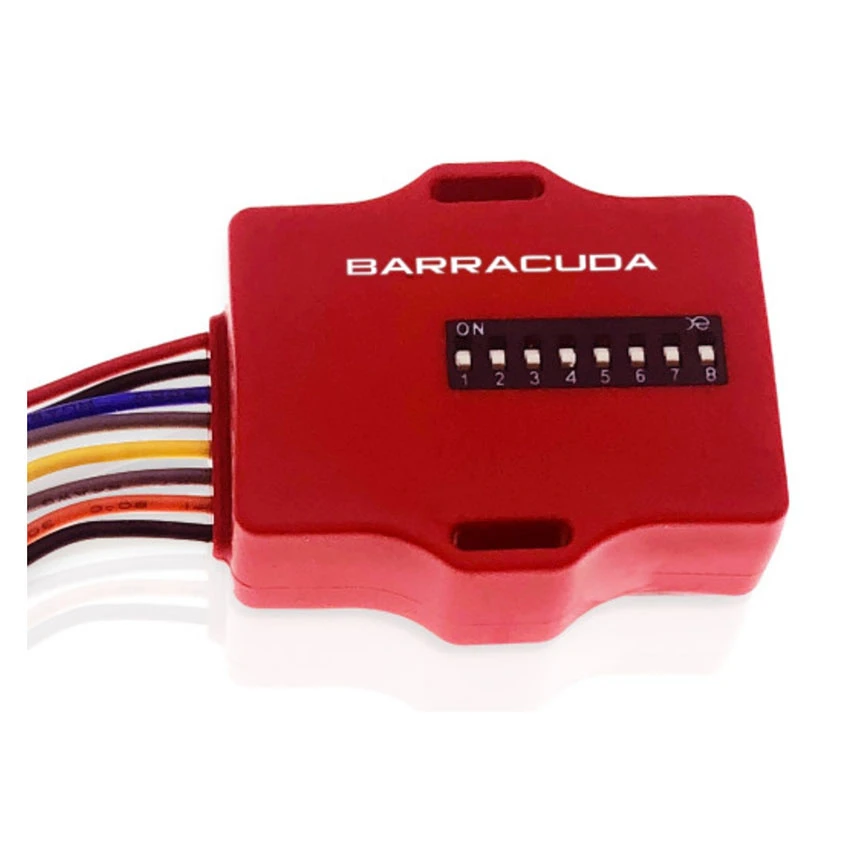

Barracuda Can-Bus Relay
Oorspronkelijke prijs was: 29,50 €.20,65 €Huidige prijs is: 20,65 €.
The Barracuda Can-bus Relay is an electrical component essential for the correct operation of the indicators.
- snelle verzending
- Gestroomlijnde service, ontworpen voor uw gemak.
- Ervaar de beste kwaliteit
- Meerdere betaalmethoden, veilig en betrouwbaar
The Barracuda Can-bus Relay is an electrical component essential for the correct operation of the indicators, compatible with most vehicles with a Can-bus system.
The Can-bus Relay provides the Can-bus system with the correct electrical charge that is required for the correct operation of the Barracuda LED indicators.
It is possible to operate the relay on 2 channels. As an example: The rear left indicator and rear right indicator. The Can-bus Relay from Barracuda can also be used with original LED indicators.
- The following resistance values can be used.
150 ohms
170 ohms
200 ohms 240 ohms 300 ohms 400 ohms 600 ohms
1200 ohms - Cable length = 200mm with 3mm connector.
- Connections:
Yellow = Input channel 1t (+)
Orange = Output channel 1 (+)
Blue = Input channel 2 (+)
Red = Output channel 2 (+)
Gray = Input mass (-)
Black = Exit surface (-) - Connectivity: 1 Can-bus Relay for 1 pair of indicator!
